Variety Approximations

Certified variety approximation builds a finite collection of interval boxes covering part of a real algebraic variety. Each accepted box is certified by local interval/Krawczyk checks, so the output can be used as a rigorous local paving rather than just a sampled mesh. The implementation is informed by certified curve projection and surface approximation methods from [BBL25] and [BHL26].

julia> CC = AcbField(128);
julia> @variables x y z;
julia> surface = variety_system([x^2 + y^2 + z^2 - 1], [x, y, z]; CCRing=CC);Compiling Static Polynomial System...
Compilation Done.
julia> p_surface = [CC(1), CC(0), CC(0)];
julia> evaluate_system(surface, p_surface)1-element Vector{AcbFieldElem}:
 0
julia> jacobian_system(surface, p_surface)1×3 Matrix{AcbFieldElem}:
 2.00000000000000000000000000000000000000  0  0
julia> surface_approx = certified_variety_approximation(surface, p_surface; tangent_radius=1e-3, normal_radius=1e-3, max_boxes=3);
julia> length(surface_approx.boxes)3
CertifiedHomotopyTracking.variety_system — Function
variety_system(F_eqs, x_vars; CCRing=AcbField(256), projective=false) -> AlgebraicVarietySystem

Compile symbolic equations as a static algebraic variety system.

Complex numeric coefficients are supported and are internally parameterized as fixed constants.

Options

  • CCRing=AcbField(256): ACB field used by the underlying system.
  • projective=false: compile a projective/homogeneous version.

Example

CC = AcbField(128);
@variables x y z;
surface = variety_system([x^2 + y^2 + z^2 - 1], [x, y, z]; CCRing=CC);

p = [CC(1), CC(0), CC(0)];
evaluate_system(surface, p)
jacobian_system(surface, p)
source
CertifiedHomotopyTracking.VarietyBox — Type
VarietyBox

Certified local box for a variety.

Fields:

  • center: center point.
  • frame: internal local tangent-normal data used by the certification boxes.
  • tangent_radius: radius in tangent directions.
  • normal_radius: radius in normal directions.
  • krawczyk_norm: final Krawczyk norm.
  • success: whether certification/refinement succeeded.
source
CertifiedHomotopyTracking.evaluate_system — Function
evaluate_system(variety, x)

Evaluate the defining equations of variety at x.

Example

@variables x y z;
CC = AcbField(128);
surface = variety_system([x^2 + y^2 + z^2 - 1], [x, y, z]; CCRing=CC);
evaluate_system(surface, [CC(1), CC(0), CC(0)])
source
CertifiedHomotopyTracking.certified_variety_approximation — Function
certified_variety_approximation(variety, start; kwargs...) -> VarietyApproximation

Build a small certified paving of an algebraic variety starting from one or more seed points.

Options

  • max_boxes=100: maximum accepted boxes.
  • tangent_radius=0.1: initial tangent radius.
  • normal_radius=tangent_radius: initial normal radius.
  • normal_rho=1/8: Krawczyk threshold for normal refinement.
  • tangent_rho=7/8: Krawczyk threshold for tangent-box validation.
  • rank_tol=1e-10: Jacobian rank threshold.
  • min_radius=1e-12, min_tangent_radius=min_radius: minimum allowed radii.
  • max_radius=1.0, max_tangent_radius=max_radius: maximum allowed radii.
  • tangent_growth_factor=2.0: growth factor when expanding tangent radii.
  • radius_shrink_factor=0.5: shrink factor after failed refinement.
  • max_refinement_iter=20: maximum local radius adjustment attempts.
  • newton_tol=1e-24, max_newton_steps=10: center polishing controls.
  • facet_anchor_scale=1.0: scale used to generate neighboring candidate anchors.
  • overlap_factor=0.75: distance threshold for skipping overlapping boxes.
  • threading=false, ntasks=Threads.nthreads(): process batches concurrently.

Example

@variables x y z;
CC = AcbField(128);
surface = variety_system([x^2 + y^2 + z^2 - 1], [x, y, z]; CCRing=CC);
approx = certified_variety_approximation(
    surface,
    [CC(1), CC(0), CC(0)];
    tangent_radius=1e-3,
    normal_radius=1e-3,
    max_boxes=5,
)
length(approx.boxes)
source
CertifiedHomotopyTracking.export_variety_obj — Function
export_variety_obj(boxes, filename)
export_variety_obj(approx::VarietyApproximation, filename)
export_variety_obj(box::VarietyBox, filename)

Export certified variety boxes to a simple Wavefront OBJ file.

Currently supports ambient dimension at most 3.

source

OBJ Export Example

Build a larger surface approximation and export the certified boxes as a Wavefront OBJ file.

CC = AcbField(128);
@variables x y z;

surface = variety_system([x^2 + y^2 + z^2 - 1], [x, y, z]; CCRing=CC);

p_surface = [CC(1), CC(0), CC(0)];

surface_approx = certified_variety_approximation(
    surface,
    p_surface;
    tangent_radius=1e-3,
    normal_radius=1e-3,
    max_boxes=3000,
    threading=true,
    ntasks=6,
);

export_variety_obj(surface_approx, "sphere_boxes.obj")

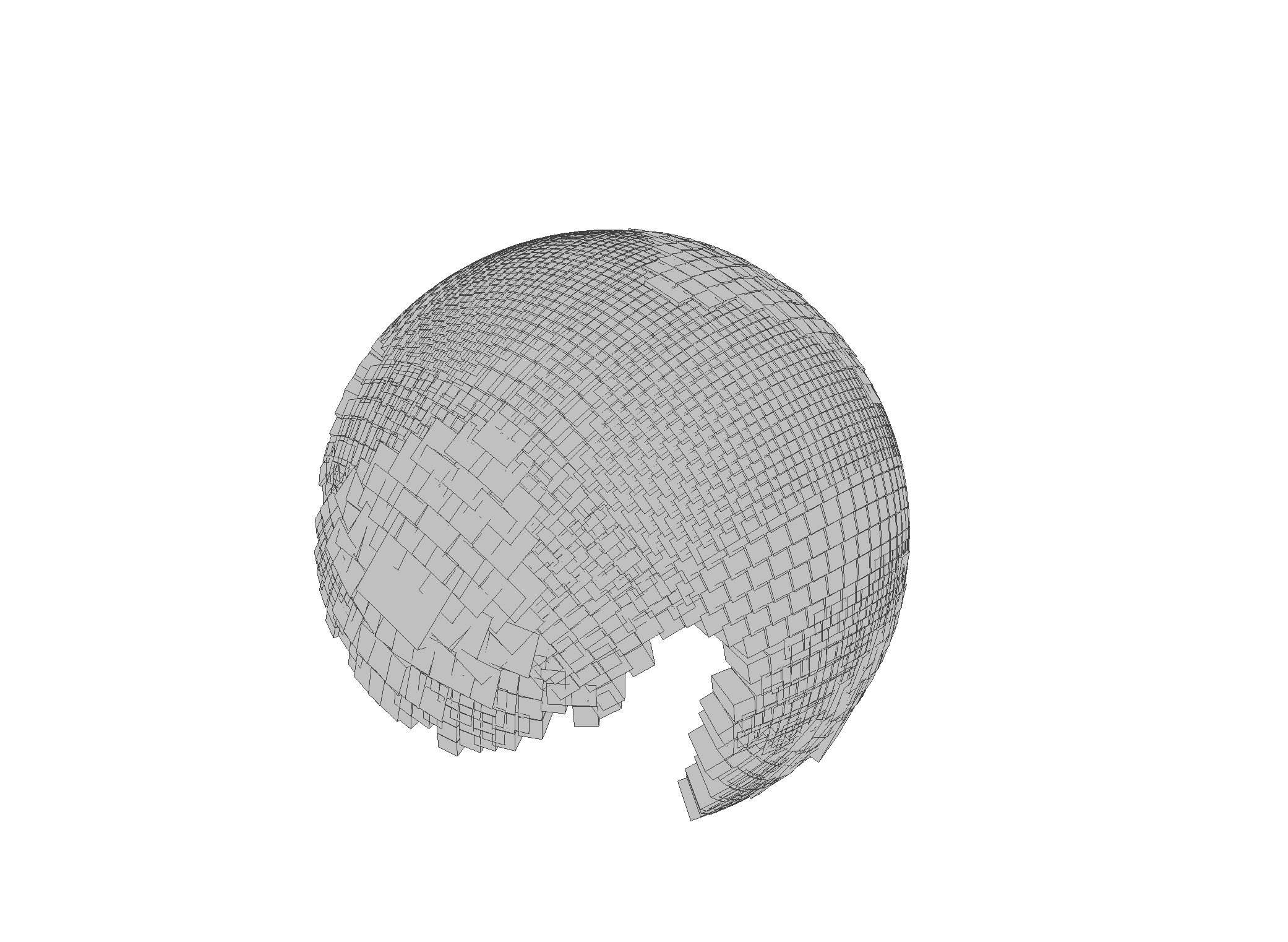

Certified box approximation exported as OBJ and viewed in MeshLab.

References

[BBL25]
M. Burr, M. Byrd and K. Lee. Certified algebraic curve projections by path tracking. In: Proceedings of the 2025 International Symposium on Symbolic and Algebraic Computation (2025); pp. 87–96.
[BHL26]
M. Burr, J. D. Hauenstein and K. Lee. Certified surface approximations using the interval Krawczyk test, arXiv preprint arXiv:2602.07718 (2026).
